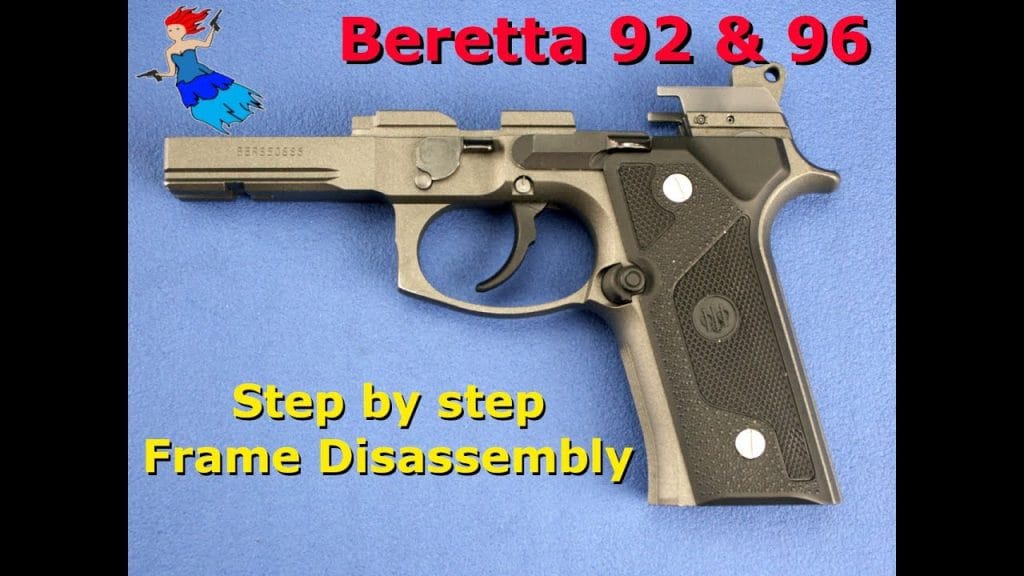

Beretta 92FS and 96 frame disassembled for gunsmithing tutorial

This page may contain affiliate links. If you click and buy, I may earn a small commission—at no extra cost to you. I only recommend tools I trust and use myself.

Home » Watch & Learn » Disassembly & Reassembly » How to Disassemble a Beretta 92FS Frame – Step-by-Step Guide
Accessibility Note:
Prefer reading or need assistive support? Click here for the full video transcript (.VTT).


Learning how to disassemble a Beretta 92FS frame doesn’t have to be complicated. Whether you’re cleaning, replacing worn parts, or prepping for an upgrade—this guide walks through every internal component clearly. It also works for the Beretta M9A1 and Beretta 96.

TL;DR – How To Disassemble a Beretta 92 FS Frame

  • Step-by-step guide to disassemble a Beretta 92FS frame
  • Works on M9A1 and Beretta 96 frames too
  • Covers every part: grips, trigger, hammer, sear, mainspring, mag catch, and more
  • Only tools needed: 1/16” punch and pick tool
  • Watch along with video timestamps for each step
  • Ideal for inspection, deep cleaning, or part replacement

Need Help Troubleshooting Your Beretta 92?

Slide won’t cycle? Trigger acting weird? Safety out of alignment?

🛠️ Check the Beretta 92/96/M9 Troubleshooting Guide

Step-by-step fixes for common issues on the 92FS, M9A1, and Beretta 96—slide or frame.


Why disassemble a Beretta 92FS frame?

Disassembling the frame lets you clean deep, inspect wear, and replace worn parts like the sear, mainspring, or hammer. If you’re troubleshooting trigger issues or swapping internals, this teardown gets you access to every component inside the lower. It’s also the only way to fully prep for Cerakote or frame mods.


What tools do you need to disassemble a Beretta 92FS frame?

  • ✅ 1/16” roll pin punch
  • ✅ Pick tool or scribe
  • ✅ Small bench block or soft surface
  • ✅ Flathead screwdriver (for grips)
  • ✅ Tray or magnetic mat (to hold parts)

Optional:


How do you remove the Beretta 92 grips?

Video Timestamp: 0:41

  • Use a flathead screwdriver to remove both grip screws
  • Pull each grip panel straight off the frame
  • Set aside in a clean parts tray

How do you remove the Beretta 92 disassembly latch?

Video Timestamp: 1:59

  • Rotate the latch lever down
  • Press the locking button while sliding the latch out
  • Lift the latch lever free from the right side

How do you remove the Beretta 92 trigger bar?

Video Timestamp: 3:25

  • Lift the rear of the bar off the sear pin
  • Slide forward and out of the trigger linkage
  • Keep track of spring tension if equipped

How do you remove the Beretta 92 slide stop?

Video Timestamp: 4:24

  • Push out the pin from right to left
  • Pull the stop free and set aside
  • Be careful not to scratch the frame

How do you remove the Beretta 92 trigger?

Video Timestamp: 5:27

  • Drift the trigger pin left to right with a 1/16” punch
  • Tilt the trigger up and back out of the frame
  • Watch for the trigger spring during removal

How do you remove the Beretta 92 mainspring?

Video Timestamp: 7:01

  • Compress the mainspring housing with a punch
  • Pry out the retainer pin
  • Slowly release spring tension

How do you remove the Beretta 92 hammer?

Video Timestamp: 8:16

  • Push out the hammer pin
  • Lift the hammer straight up
  • Note hammer strut orientation for reassembly

How do you remove the Beretta 92 sear?

Video Timestamp: 9:07

  • Drive out the sear pin
  • Carefully lift the sear and spring
  • Do not lose the tiny detent spring

How do you remove the Beretta 92 hammer release and ejector?

Video Timestamp: 10:16

  • Remove the small screw and plate
  • Pull out the ejector arm
  • Lift out the hammer release lever

How do you remove the Beretta 92 magazine catch?

Video Timestamp: 11:55

  • Press the catch inward
  • Use a pick to pry the retainer spring
  • Slide out the catch and spring

What Should You Check After Frame Disassembly?

  • Confirm all springs and pins are present
  • Look for wear on the trigger bar, sear, and hammer surfaces
  • Check the ejector for cracks or burrs
  • Make sure the mainspring isn’t kinked or deformed
  • Inspect the magazine catch and release spring for damage

How Should You Prep the Frame for Cleaning or Rebuild?

  • Wipe each part with a clean rag or degreaser
  • Use a pick to clean tight spots like the hammer well
  • Lightly oil pivot points (trigger, hammer, slide stop)
  • Organize parts in assembly order to simplify reassembly

FAQ – Beretta 92FS Frame Disassembly

Does this work for the M9A1 and Beretta 96?

Yes. The frame design and teardown steps are the same for the 92FS, M9A1, and 96 series.

What’s the hardest part to remove?

The hammer release and ejector. They’re pinned together and spring-loaded—use a punch and go slow.

Can I leave the sear and hammer in place for cleaning?

You can, but deep cleaning or inspection requires full disassembly. It’s worth doing if you’re already in there.

Do I need any special tools?

Just a 1/16” punch and a pick tool. A bench block helps but isn’t mandatory.

What causes the trigger bar to hang up during removal?

Usually, the disconnector spring tension or frame burrs near the pin hole. Check for grit or misalignment.

How do I avoid losing springs or small parts?

Work inside a tray or towel-lined area. Parts like the mainspring cap can launch if not controlled.
