Are you trying to figure out how to field strip the Beretta 84 or Beretta 85 so you can clean it and make sure it is operating safely? You are not alone. The Beretta Cheetah looks like a scaled-down 92FS, but the takedown procedure is different and the small parts need careful handling.
This guide covers field stripping the Beretta 80 series: the Beretta 81, Beretta 82, Beretta 84, and Beretta 85 (F and FS models). The 82 is identical to the 84 except chambered in .32 ACP instead of .380 ACP, so the same steps apply. The Beretta 84 is the double-stack .380 ACP Cheetah. The Beretta 85 is the slimmer single-stack .380 ACP model. Shooters with smaller hands or those carrying concealed often prefer the Beretta 85 because of the thinner grip, while the field-strip process remains the same across the covered 80 Series pistols. Note: This guide does not apply to the modern Beretta 80X (2023+). The 80X uses a different system and should be treated as a separate pistol.
Field stripping is basic maintenance, not deep disassembly. You will remove the slide, recoil spring assembly, and barrel so you can clean, inspect, and lubricate the major parts. If you need to go deeper than that, the Beretta 80 Series Slide Disassembly Guide covers full slide breakdown. The Beretta 80 Series Slide Assembly Guide covers putting the slide parts back together.
Quick Answer: How do you field strip a Beretta 80 Series pistol?
To field strip a Beretta 80 Series pistol, unload the pistol, remove the magazine, verify the chamber is empty, press the disassembly latch, rotate the takedown lever down, ease the slide forward off the frame, remove the recoil spring assembly, and lift the barrel out of the slide. Reassembly is the reverse: install the barrel, install the recoil spring, slide the upper back onto the frame, rotate the takedown lever up, and perform a basic function check.
Models Covered
- Beretta 81 Cheetah
- Beretta 82 Cheetah
- Beretta 84 Cheetah
- Beretta 84FS Cheetah
- Beretta 85 Cheetah
- Beretta 85FS Cheetah
Models Not Covered
- Beretta 80X Cheetah
This Guide Also Answers
- How to field strip a Beretta 84FS Cheetah
- How to field strip a Beretta 85FS Cheetah
- How to remove the slide from a Beretta 80 Series pistol
- How to remove the barrel from a Beretta Cheetah
- How to reinstall the barrel and recoil spring on a Beretta 84 or 85
- How to safely decock a Beretta 80 Series pistol after reassembly
Safety Gate: Read Before You Touch Anything
- Remove the magazine before touching the takedown lever.
- Lock the slide open and visually inspect the chamber.
- Physically confirm the chamber and magazine well are empty.
- Keep ammunition off the bench while field stripping the pistol.
- Wear safety glasses when removing or reinstalling the recoil spring assembly.
Tools and Parts Checklist
| Tool / Item | Used For | Notes |
|---|---|---|
| Safety glasses | Basic eye protection | Recommended any time springs are removed or installed. |
| Bench mat or towel | Protecting the pistol and bench | Keeps parts from rolling away. |
| Cleaning cloth | Wiping barrel, slide, and frame rails | Field stripping is a good time for basic inspection and cleaning. |
| Cleaner and lubricant | Cleaning and light lubrication | Use light lubrication on slide rails and contact points. |

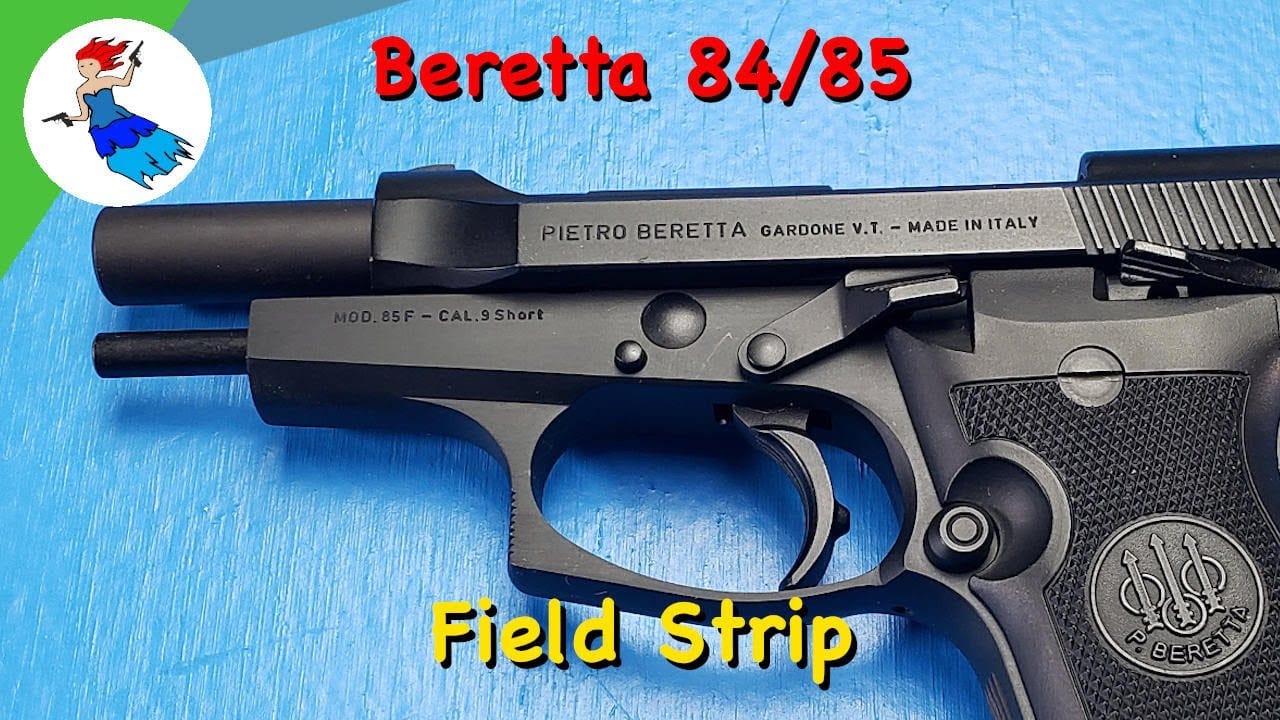

Video Walkthrough
Video Summary
This video walks through the Beretta 80 Series field strip process in real time. It shows how to unload and clear the pistol, remove the slide, remove the recoil spring assembly, remove the barrel, reinstall the barrel and recoil spring, reinstall the slide, and safely decock after reassembly.
Watch the video if the written steps feel unclear. The takedown lever and slide movement are simple, but hand position matters.
Step 1: Unload and Clear the Pistol
Before you touch the takedown lever, the pistol must be unloaded. This is not optional. The disassembly latch is on the right side of the frame, but you do not want to start manipulating the slide while there is a round in the chamber.
Remove the magazine. Press the magazine release and drop the magazine out. Set it aside.
Lock the slide open. Pull the slide fully to the rear and engage the slide stop if your model has one. Some 80 Series variants have a manual safety that also functions as a decocker; others do not have a slide stop lever. If your model does not lock open automatically, hold the slide rearward while you inspect.
Visually inspect the chamber. Look into the chamber from the ejection port. Confirm there is no cartridge in the chamber. Then physically confirm the chamber is empty by looking through the bore from the muzzle end or feeling with a finger if the design allows safe visual confirmation. Do not use a cleaning rod as a chamber flag; just look.
Check the magazine well. Look into the magazine well and confirm it is empty.
Remove ammunition from the bench. Move all live ammunition away from your work area before proceeding.
Step 2: Lock the Slide to the Rear
With the magazine removed and the chamber verified empty, lock the slide to the rear if your model has a slide stop. This gives you full access to the takedown lever and disassembly latch on the right side of the frame.
Pull the slide fully rearward and engage the slide stop lever upward with your thumb. On some models, the slide stop is small and may require deliberate pressure. Keep the muzzle pointed in a safe direction while you do this.
If your model does not have a slide stop, hold the slide rearward manually while you work the takedown lever in the next steps. Do not let the slide slam forward during this process.
Step 3: Press the Disassembly Latch
The disassembly latch is located on the right side of the frame, near the takedown lever. It is a small button that must be depressed before the takedown lever can rotate.
Locate the latch. Look at the right side of the frame near the trigger guard area. You will see a small button or detent just below the takedown lever pivot.
Press the latch firmly. Use your thumb to press the latch inward. It does not need to be forced, but it does need to be fully depressed. If you try to rotate the takedown lever without pressing the latch, the lever will not move and you may damage the latch or lever.
Warning: Do not force the takedown lever if the latch is not fully depressed. Forcing it can bend the lever, damage the latch detent, or mar the frame finish. If the lever resists, stop and verify the latch is pressed.
Step 4: Rotate the Takedown Lever Down
With the disassembly latch depressed, rotate the takedown lever downward approximately 90 degrees. The lever pivots around its mounting pin on the right side of the frame.
Rotate the lever smoothly until it stops. You should feel it release the slide rails from the frame locking interface. The slide is now free to move forward off the frame, but it is still under spring tension from the recoil spring.
If the lever binds or stops halfway, do not force it. Verify the latch is still depressed and the slide is fully to the rear. Sometimes the lever catches on frame wear or debris; a small wiggle while maintaining latch pressure will free it.
Step 5: Remove the Slide from the Frame
Now the slide can move forward off the frame rails. This step requires control because the recoil spring is still compressed inside the slide.
Ease the slide forward. With your support hand on the slide and your firing hand on the frame, let the slide move forward slowly. Do not let it launch forward under spring pressure. The recoil spring will push the slide forward as the takedown lever releases it.
Slide the slide off the frame rails. Once the slide reaches the forwardmost position, lift it up and forward to remove it from the frame rails. Set the frame aside on your bench mat.
Inspect the frame rails. With the slide removed, look at the frame rails and the exposed hammer and firing pin block area. Check for carbon buildup, cracks, or unusual wear. The frame rails should be smooth and free of burrs.
Step 6: Remove the Recoil Spring Assembly
The recoil spring assembly sits inside the slide, around the barrel. It is under light tension and can launch if you are not careful.
Compress slightly and lift out. Use your thumb to press the recoil spring guide slightly toward the muzzle end of the slide, then lift the spring assembly out of its recess. The spring will expand slightly as you remove it. Keep your hand over the spring so it does not shoot across the room.
Note the orientation. The recoil spring has a specific orientation. The guide rod end typically faces the muzzle, and the spring end seats against the slide breech face. Note this before you set it down so you reinstall it correctly.
Inspect the spring. Look for kinks, rust, uneven compression, or weak tension. A recoil spring that has lost tension will cause feeding and ejection problems. Replace it if it looks tired.
Pro Tip: The recoil spring is one of the most common wear items on the 80 Series. If your Cheetah has started having stovepipes or failure-to-feed malfunctions after years of reliable service, the recoil spring is the first part to suspect. It is inexpensive and takes 30 seconds to replace during field stripping.
Step 7: Remove the Barrel from the Slide
The barrel lifts straight out of the slide once the recoil spring is removed.
Lift the barrel out. Grasp the barrel hood area and lift the barrel up and out of the slide. It should come free with no resistance. If it hangs up, check that the recoil spring is fully removed and not blocking the barrel lug.
Inspect the barrel. Check the chamber, feed ramp, muzzle crown, and bore for carbon, burrs, cracks, or damage. The feed ramp should be smooth and free of deep scratches. The muzzle crown should be clean and symmetrical. The bore should show rifling and no excessive leading or copper fouling.
Check the locking surfaces. Look at the barrel locking block and slide locking surfaces for peening, galling, or cracks. These surfaces take stress during cycling and will show wear before other parts.
Step 8: Reinstall the Barrel
Reassembly is the reverse of disassembly. Start with the barrel.
Drop the barrel back into the slide. Place the barrel into the slide with the muzzle facing forward and the feed ramp facing down into the frame rail area. The barrel should seat fully with no rocking or play.
Verify barrel sits correctly. The barrel should sit flat in the slide and not protrude upward at an angle. The locking block should engage the slide locking surfaces. Wiggle the barrel slightly to confirm it is fully seated.
Inspect again if needed. If you noticed debris or carbon under the barrel lug, clean it before reinstalling. A dirty barrel lug can cause the barrel to sit high and affect slide cycling.
Step 9: Reinstall the Recoil Spring Assembly
The recoil spring assembly goes back into the slide around the barrel, in the same orientation it came out.
Seat the spring correctly. Compress the spring slightly and place the guide rod end toward the muzzle, with the spring end against the slide breech face. The spring should drop into its recess smoothly.
Avoid kinking or launching the spring. Keep the spring straight as you install it. A kinked spring will bind and cause malfunctions. Keep your thumb over the spring during installation so it does not launch if it slips.
Verify it sits against the correct surface. The spring should be fully seated in its recess and the guide rod should be visible at the muzzle end. The spring should not protrude above the slide rails.
Step 10: Reinstall the Slide on the Frame
With the barrel and recoil spring installed, the slide goes back onto the frame.
Align the slide rails. Hold the slide above the frame with the muzzle facing forward. Align the slide rails with the frame rails. The slide should drop onto the rails with minimal effort.
Move the slide rearward. Pull the slide rearward onto the frame rails. Keep it controlled. The recoil spring will compress slightly as the slide moves back. Do not slam the slide rearward; let it move smoothly.
Keep it controlled. The slide may resist at the point where the takedown lever engages. This is normal. Keep steady pressure until the slide is fully rearward.
Step 11: Rotate the Takedown Lever Up
With the slide fully rearward, rotate the takedown lever back up to lock the slide to the frame.
Lock the slide back into place. Rotate the takedown lever upward approximately 90 degrees until it returns to its locked position. You should feel it engage the slide rails.
Confirm the lever returns to locked position. The lever should sit flush against the frame and not wiggle. If it does not seat fully, verify the slide is fully rearward and try again.
Warning: Do not try to rotate the takedown lever up while the slide is forward. The lever engages the slide rails, and forcing it while the slide is forward can damage the lever, the frame, or the slide rail interface.
Step 12: Function Check and Safe Decock
After reassembly, verify the pistol functions correctly before loading ammunition.
Cycle the slide. Pull the slide fully rearward and let it return forward under spring pressure. It should move smoothly with no grinding, binding, or unusual resistance. The slide should lock open if your model has a slide stop and you engage it.
Verify trigger and hammer behavior without ammunition. Point the pistol in a safe direction. Pull the trigger. The hammer should fall. If your model has a manual safety or decocker, test it: engage the safety and verify the trigger is blocked. Disengage the safety and verify the trigger functions again.
Use the decocker or safety system correctly. If your model has a decocker, use it to lower the hammer safely. If it does not have a decocker, lower the hammer manually by pulling the trigger while controlling the hammer with your thumb. Keep the muzzle pointed in a safe direction during this process.
Do not dry-fire recklessly. If the model or condition is unknown, minimize dry-firing. The 80 Series firing pin is not designed for excessive dry-fire without a snap cap or protective cap.
Inspector Checklist: What to Look For While It Is Field Stripped
Field stripping is the best time to catch wear before it becomes a malfunction. Inspect the major contact points before cleaning and reassembly.
- Barrel: Check the chamber, feed ramp, muzzle crown, and bore for carbon, burrs, cracks, or damage.
- Recoil spring: Look for kinks, rust, uneven compression, or weak tension.
- Slide rails: Check for burrs, galling, cracks, or unusual wear.
- Frame rails: Look for peening, cracks, or dry contact surfaces.
- Breech face: Check for carbon buildup, brass flakes, or firing pin hole damage.
- Extractor area: Look for carbon buildup and signs of weak extraction.
- Feed ramp: Wipe clean and inspect for rough spots or damage.
Quick Troubleshooting: Common Field Strip Problems
| Problem | Likely Cause | Fix |
|---|---|---|
| Takedown lever will not rotate | Disassembly latch not fully pressed or slide not positioned correctly | Stop, verify the pistol is unloaded, press the latch fully, and try again without forcing the lever. |
| Slide will not move forward off the frame | Takedown lever not fully lowered or slide rails are dirty | Confirm the lever position, keep the slide controlled, and clean/lubricate rails if needed. |
| Recoil spring assembly jumps out | Spring tension released too quickly | Remove it slowly while keeping one hand over the spring assembly. |
| Barrel will not seat during reassembly | Barrel not aligned in the slide or debris under the barrel lug | Remove the barrel, wipe the lug area, and reinstall it flat in the slide. |
| Slide feels gritty after reassembly | Dry rails, carbon, or debris in the rail channels | Clean the rails and apply light lubrication to the contact points. |
Extended FAQ
How do you field strip a Beretta 84FS Cheetah?
Unload the pistol, remove the magazine, verify the chamber is empty, press the disassembly latch, rotate the takedown lever down, and slide the upper assembly forward off the frame. Then remove the recoil spring assembly and barrel from the slide.
Is the Beretta 85FS field strip the same as the Beretta 84FS?
Yes. The Beretta 85FS is thinner because it uses a single-stack magazine, but the basic field strip process is the same as the Beretta 84FS.
Does this guide apply to the Beretta 81 Cheetah?
Yes. The Beretta 81 is part of the older Beretta 80 Series Cheetah family. The field strip process is the same for the models covered in this guide.
Does this guide apply to the Beretta 80X Cheetah?
No. This guide is for the older Beretta 80 Series Cheetah pistols. The modern Beretta 80X uses a different system and should be treated as a separate pistol.
Do I need tools to field strip a Beretta 80 Series pistol?
No special tools are usually needed for normal field stripping. A bench mat, cleaning cloth, safety glasses, and basic cleaning supplies are enough for routine slide, barrel, recoil spring, and frame inspection.
What should I inspect while the Beretta Cheetah is field stripped?
Inspect the barrel, chamber, feed ramp, slide rails, frame rails, recoil spring, locking surfaces, extractor area, and breech face. Look for carbon buildup, cracks, burrs, weak springs, and abnormal wear.
Next Steps
Once the pistol is field stripped, you can clean and inspect the barrel, slide, recoil spring, frame rails, breech face, and extractor area. If you need to go deeper than basic field stripping, follow the Beretta 80 Series Slide Disassembly Guide. When you are ready to reinstall the internal slide parts, use the Beretta 80 Series Slide Assembly Guide.
For general handgun cleaning and lubrication procedures, see the Handgun Cleaning Guide.
Final Thoughts: Confidence Through Competence
The Beretta 80 Series field strip is straightforward once you know the sequence. There are no hidden pins, no tricky springs, and no special tools. The whole process takes under five minutes.
What matters is the order: unload, lock, press the latch, rotate the lever, ease the slide off, remove spring and barrel, inspect, clean, reinstall, rotate the lever up, function check. Do not skip the function check. It is your confirmation that the pistol is back together correctly before you load it.
Field stripping is where you find problems before they find you at the range. A dirty feed ramp, a tired recoil spring, or carbon in the frame rails will cause malfunctions that look like ammunition issues but are actually maintenance issues. Clean your pistol. Inspect the parts. Replace springs before they go soft. And when you do field strip it, follow the sequence every time.
You do not need to be an armorer to keep your Beretta Cheetah running. You just need the right sequence and the discipline to follow it.
