Tools used in the 1911 Series 70 Videos

There are several tools used in the 1911 Series 70 videos and I figured that I would share what was used for each step in this post. There are affiliate links in this posting to get you to the exact product that I own and used in the video series. Not all links are affiliate links.

When purchasing tools I try to buy them from Brownells since they have a 100% Satisfaction Guarantee. I have roll pin punches that have been replaced with no hassle because I broke one. Yes, I do have a couple of Harbor Freight tools that I used in this video. They serve their purpose.

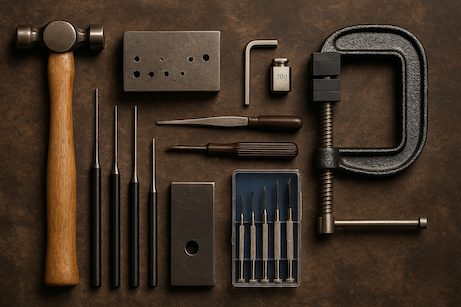

Tools used in the 1911 Series 70 Videos:

Field Strip:

Tactical Paperclip

Slide Disassembly and Reassembly:

1911 Extractor Removal Tool – to remove and install the Firing Pin Retainer as well as remove the extractor

Frame Disassembly:

Grip Removal:

3/32″ Allen Wrench – To Remove Grip Screws

Removing the Safety and Slide Stop Plungers and Plunger Spring:

1/16″ Punch – To push out the plungers and spring

Removing the Mainspring Housing:

3/32″ Punch – Removing the Mainspring Housing Pin

20g calibration weight – I have several from reloading scales I use (don’t trust them after using them this way) – Compress the Mainspring

1/16″ Punch – Removing the Mainspring Cap Pin

Removing the Hammer, Sear and Disconnector:

1/16″ Punch – Removing Hammer and Sear Pin

Removing The Magazine Catch and Trigger:

Brownells Magna Tip Magnetic Law Enforcement Handle with the 150-4 tip – For turning the Magazine Catch Lock

Frame Reassembly:

Installing the Magazine Catch:

Brownells Magna Tip Magnetic Law Enforcement Handle with the 150-4 tip – For turning the Magazine Catch Lock

Installing the Sear and Disconnector:

Tweezers – Putting Sear onto Disconnector and installing them into the Frame

1/16″ Punch – For holding the Sear and Disconnector in the frame to test for movement

Assembling the Mainspring Housing:

4 1/2″ Vice – To compress spring and cap in Mainspring Housing

Vice Jaws – To protect the finish of Mainspring Housing

20g calibration weight – To compress spring and cap below the surface of the Mainspring Housing enough to install Cap Pin (don’t trust them for calibrating a scale after using them this way)

Installing the Mainspring Housing and Grip Safety:

Brownells Universal Pistol Armorers Block – (you can use a piece of 2X4 with holes drilled into it as well)

3/32″ Punch – To install Mainspring Housing Pin

8 oz Ball Peen Hammer – To install Mainspring Housing Pin

Installing the Thumb Safety:

Precision Screw Driver Set – To compress the Safety Plunger

Installing the Grip Panel:

3/32″ Allen Wrench – To Remove Grip Screws
